Speedbox Ebike Speed Tuning Chip fits Shimano 1.3B fits EP8 Motor

Speedbox Ebike Speed Tuning Chip fits Shimano 1.3B fits EP8 Motor

Regular price $329.99 USD
Regular price Sale price $329.99 USD
Sale Sold out
Shipping calculated at checkout.
Speedbox Ebike Speed Limit removal Chip for Shimano 1.3B for EP8 Motor  Remove Your EBike Speed Limit!The "+E-Tube port" variant is intended for e-bikes without a free E-Tube port - usually e-bikes with one of these components:    Satellite System ON/ OFF Switch    Di2 (electronic gear shifting system)PROPERTIES:
Speed limiter: deactivated
Activation/deactivation: SpeedBox App/ lights
Display shows:    real values up to 23 km/ h    then the actual values are only displayed in the SpeedBox App
Compatible with:    motors EP8    SpeedBox App
Not compatible with:    Giant Revolt E+ (2022)This is an electronic device, once the package is opened it can not be returned!!!!!!!!

From the ground up redesigned tuning chip for your e-bike with a
Shimano motor – with a new design, completely new hardware and firmware,
and Bluetooth technology to connect your e-bike with a mobile app.


SpeedBox 1.3 B.Tuning offers a unique
connection between your e-bike and mobile phone. This tuning chip is a
top-notch product perfectly optimized for the most powerful ride and
experience. It suppresses the speed limiter so you can enjoy your ride
at unlimited speed. After pairing with the SpeedBox App mobile
application, you will see real riding data on your phone’s display. You
may also set the speed limit of your own choice. Monitor and store all
the parameters of your trip on the display of your phone in any place,
anytime.


Compared to previous versions, this new product also plugs into the
engine's E-Tube port. It is therefore necessary that the e-bike motor in
which you are going to install the new version of SpeedBox for Shimano

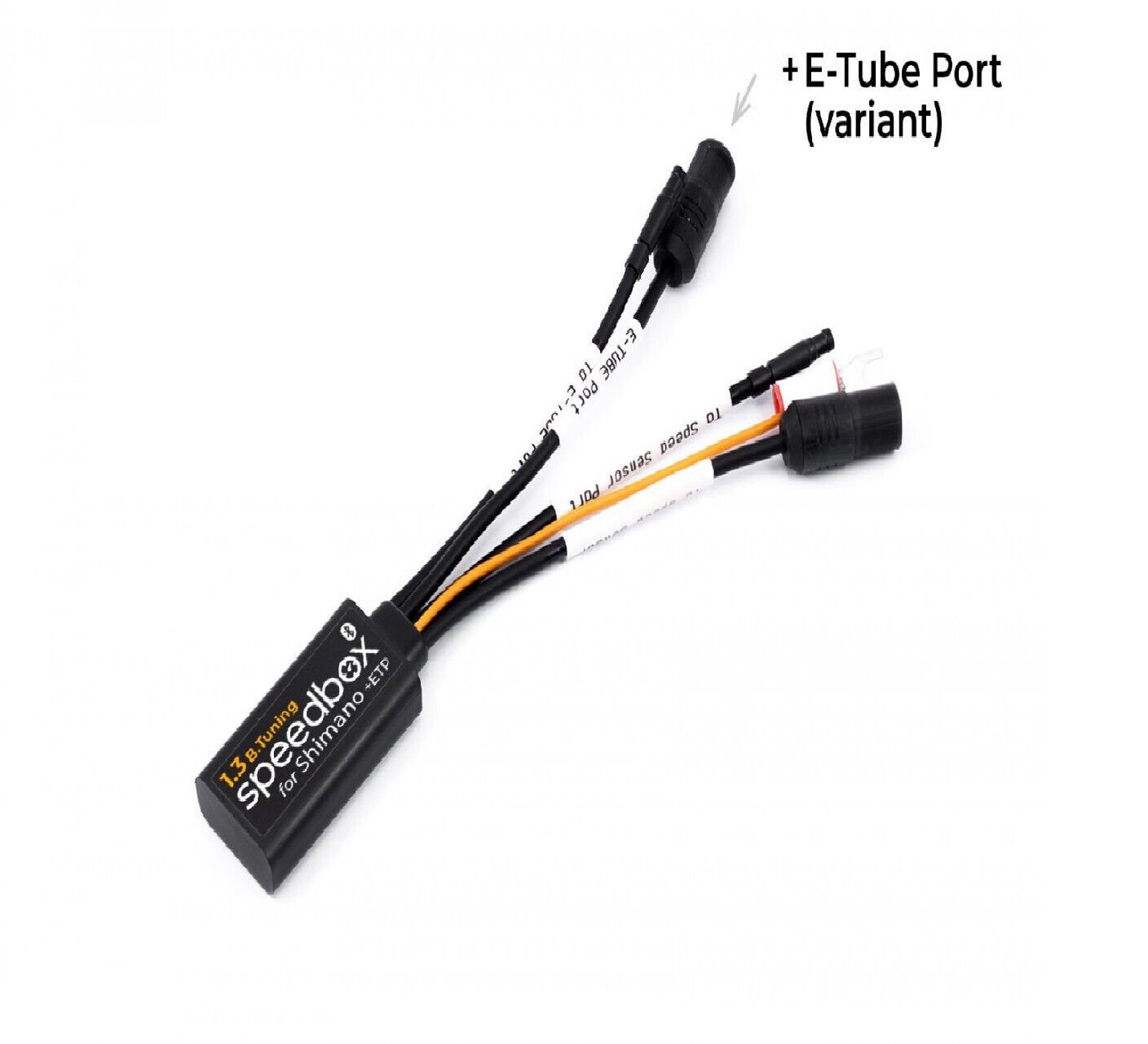

has one free E-Tube port. In case you do not have a free E-Tube port in the motor, please select “+E-Tube Port” variant.


E-bikes, which do not have a free E-Tube port, are usually those with a Di2 electronic gear shifting system, or with a tube integrated Satellite System ON/OFF Switch (EW-SW100, EW-SW300).


How does SpeedBox B.Tuning work?

This tuning chip is also very easy to control - via mobile app or by turning on/off the lights. If
the lights are turned off, SpeedBox is activated. The chip can be
easily deactivated by turning on the lights. A new feature in this
SpeedBox version is the possibility of activating the double-click
function in the app. By activating this function, the lights become
independent of tuning. By double-clicking on the LIGHT button, the
lights will flash, and the tuning will turn on. If you double-click on
the button again, the tuning will turn off and the e-bike will work the
same as without a chip.


You can set the maximum speed limit in the app.

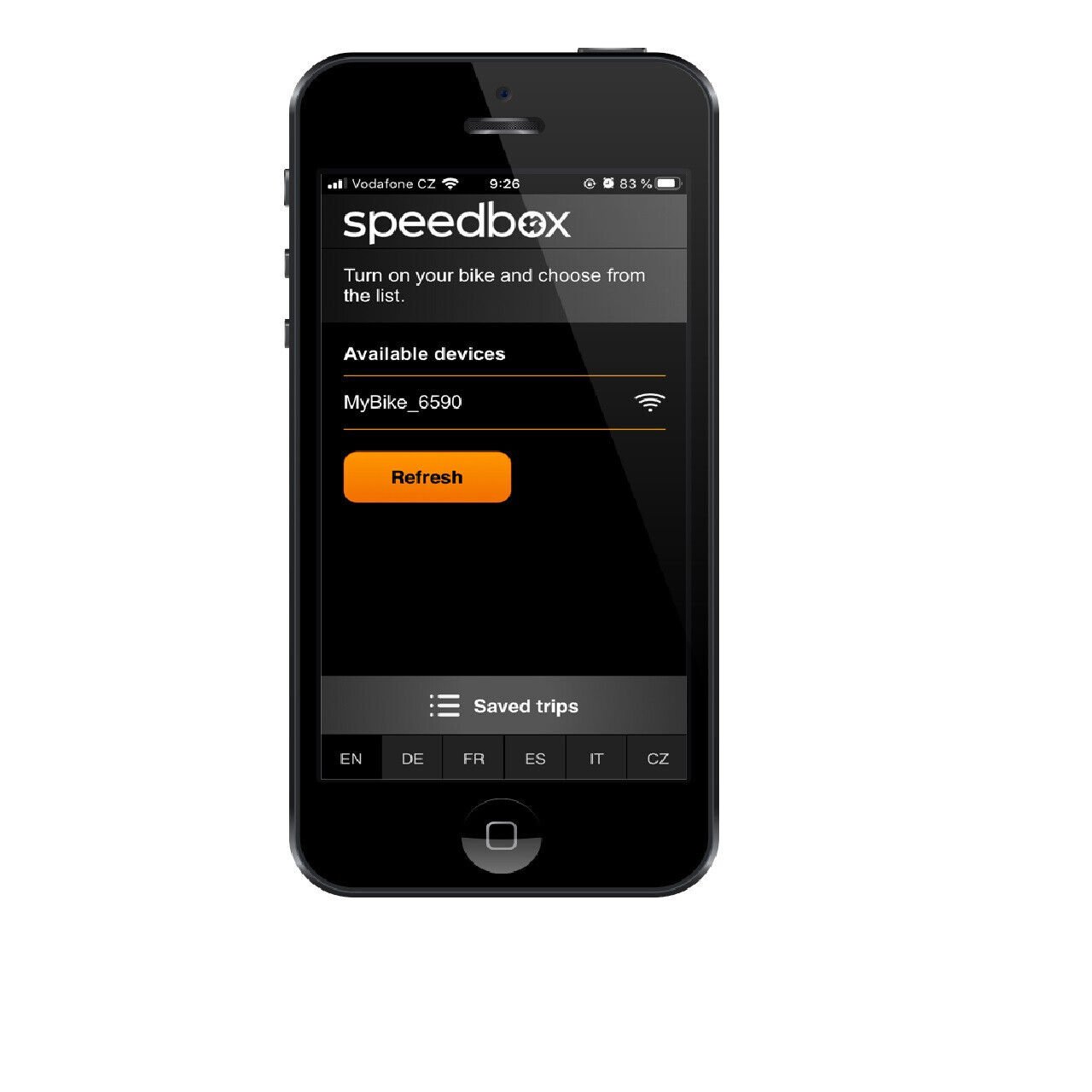

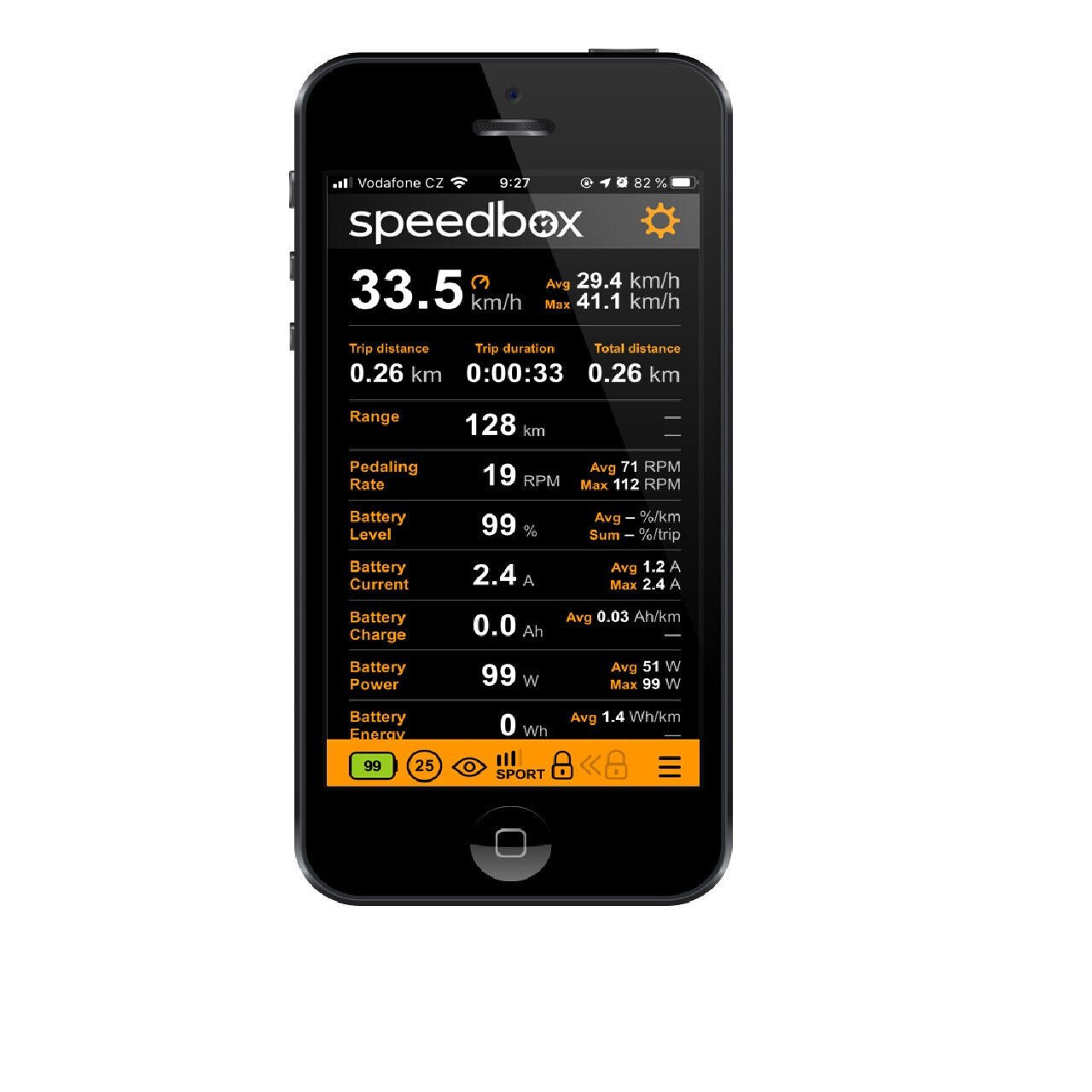

SpeedBox App for SpeedBox 1.3 B.Tuning

SpeedBox App is an application
specially designed for SpeedBox 1.3 B.Tuning, which uses Bluetooth
technology to connect your e-bike to your mobile phone. After
downloading the application and connecting your mobile phone to your
e-bike, you will see current data and trip parameters displayed on your
phone. You can store your trips, compare the results with friends and
monitor your performance and progress. Thanks to that, you may fully
enjoy the ride and leave the performance data analysis for later.


SpeedBox App features:


  • Tuning control
  • Activating the "double-click tuning control" function
  • Speed limit setting
  • Saving and viewing your trips

We recommend downloading SpeedBox App
to your phone before ordering the SpeedBox 1.3 B.Tuning chip. You can
try out our demo version and get to know all the awesome features and,
at the same time, make sure that the application is fully functional on
your phone. To connect to the SpeedBox B.Tuning chip, your phone needs
to be equipped with Bluetooth 4.0 or higher.

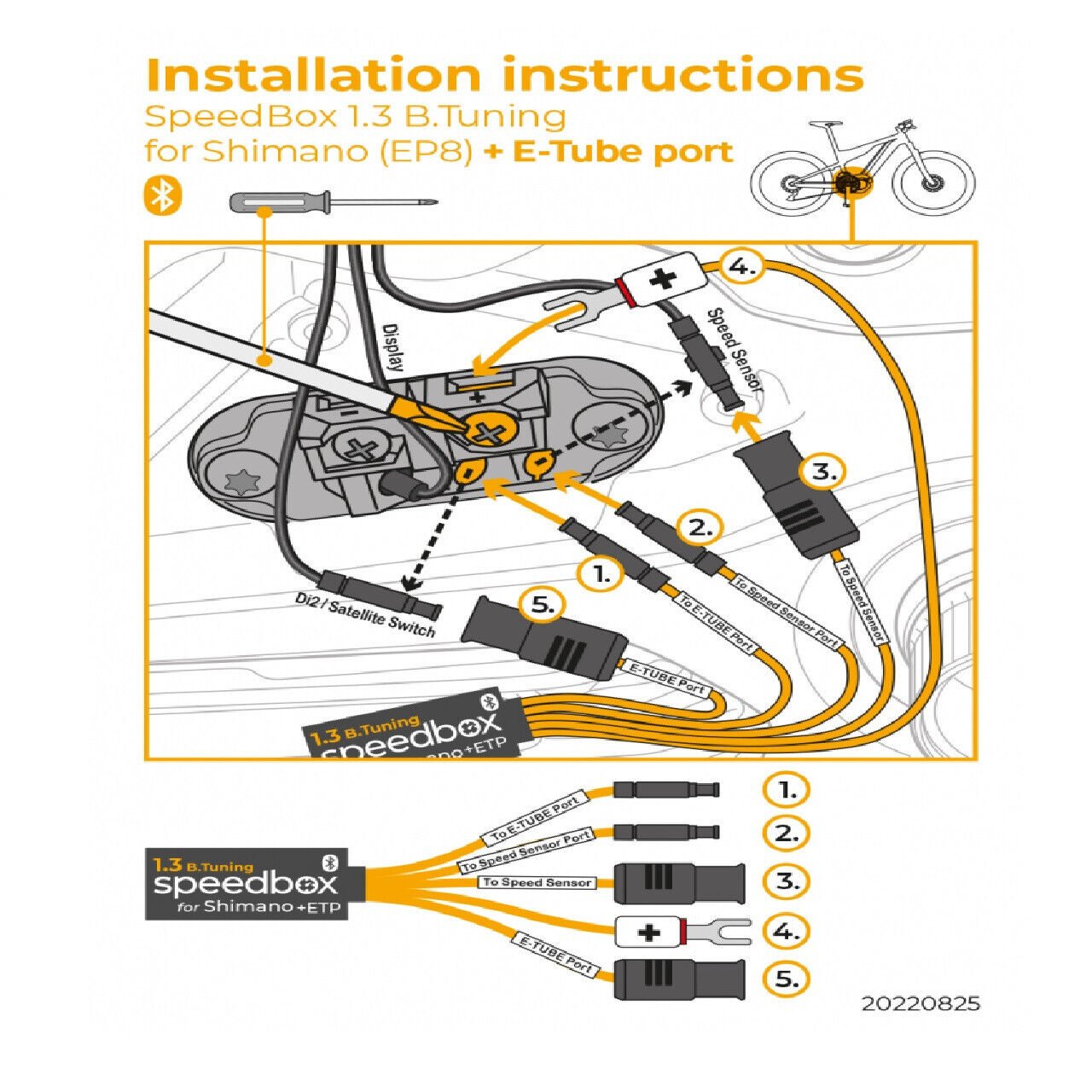

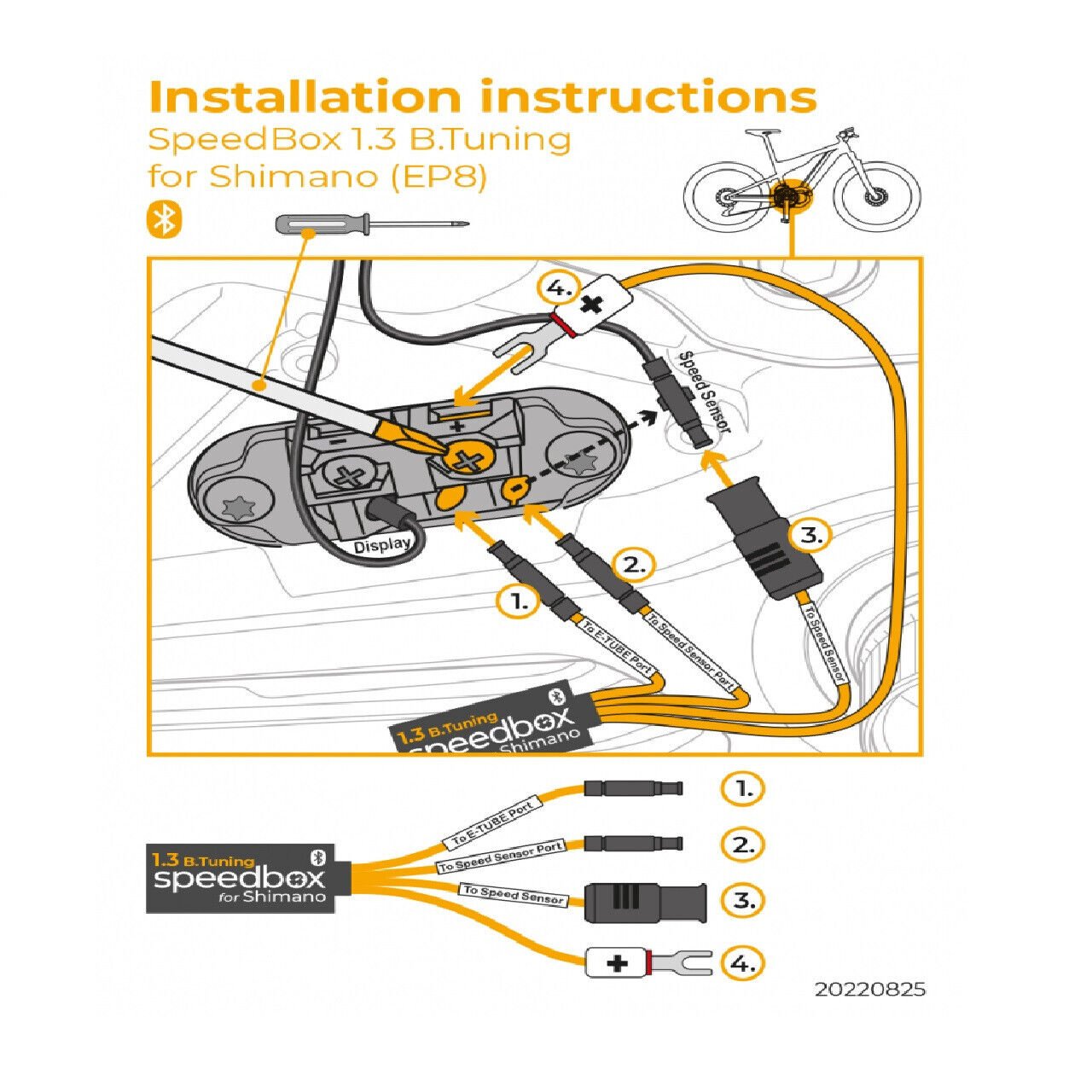

Assembly

We use original connectors for the
production of SpeedBox chips ensuring that the installation process is
very simple and the chip is connected properly. We have also prepared
detailed instructions and videos to make installation easy for you.
Disassembly of the tuning chip is just as easy. If you have any troubles
with installation or disassembly, do not hesitate to contact us.


If you are planning to install SpeedBox on a brand-new
bike, make sure you ride it for at least 1 km before the chip is
activated.

WarningPlease
note that the operation of this type of modified electric bikes on
public roads may be against the law in some countries. The manufacturer
takes no responsibility for damages resulting from the use SpeedBox
products. Electric bikes equipped with SpeedBox products are not allowed
to be used on public roads, cycling paths and public places. Electric
bikes equipped with SpeedBox products can be used exclusively on private
property and entirely at one’s own risk. The use of SpeedBox may void
the warranty of your ebike.We strongly recommend using other safety features and protective gear to prevent injuries.
